Pixel Pitch: Importance and Its Effect on Display Quality

​

Pixel pitch is a key specification in LED display technology that defines the distance (in millimeters) between the centers of two adjacent pixels. It directly influences the display's resolution, image sharpness, viewing distance, and overall visual quality. The pixel pitch is one of the most important factors when choosing an LED display for both indoor and outdoor environments.

How Pixel Pitch Affects Display Quality

1. Resolution and Clarity:

   • Smaller Pixel Pitch: A smaller pixel pitch means that the pixels are placed closer together, resulting in higher pixel density. This leads to better resolution, clearer images, and sharper text, especially when viewed from close distances.

   • Larger Pixel Pitch: A larger pixel pitch means that the pixels are spaced further apart, which results in lower resolution and a more pixelated image, especially when viewed up close.

For instance, an LED screen with a pixel pitch of 1.2mm will provide a much clearer and sharper image when viewed from close distances compared to a screen with a 5mm pixel pitch.

​

1. Viewing Distance:

   • Close Viewing Distance: For applications where the audience will be close to the screen (e.g., retail displays, control rooms, or indoor events), a smaller pixel pitch is ideal because it ensures high resolution and sharpness at shorter viewing distances.

   • Far Viewing Distance: For applications where the audience will be farther away from the screen (e.g., outdoor billboards, stadium displays, or large public signage), a larger pixel pitch is acceptable. From a distance, the human eye cannot distinguish individual pixels, so the image will still appear sharp.

   • ​

   General Guideline:

• For indoor environments, a pixel pitch between 1mm to 3mm is ideal for close viewing.

• For outdoor environments, a pixel pitch of 4mm or higher is often used since the viewing distance is typically greater.

1. Brightness and Visual Impact:

   • Smaller Pixel Pitch: LED displays with smaller pixel pitches tend to have a higher pixel density, meaning more LEDs per unit area. As a result, they can deliver higher brightness and more detailed images. This makes them perfect for settings where fine details are important, such as broadcasting or digital signage in retail environments.

   • Larger Pixel Pitch: Displays with a larger pixel pitch have fewer LEDs in the same area, which may affect the brightness and sharpness, particularly for applications where detailed visuals are crucial. However, for large-scale outdoor displays, this is less of an issue due to the longer viewing distances.

2. Cost:

   • Smaller Pixel Pitch: As the pixel pitch decreases (meaning more pixels are packed into the display), the cost of the LED screen increases. This is due to the higher pixel density, more advanced technology required to achieve this density, and the increased processing power needed to handle higher resolutions.

   • Larger Pixel Pitch: Displays with a larger pixel pitch are generally less expensive because they have fewer LEDs and lower pixel density, making them more cost-effective for large-scale displays or applications where high resolution isn't necessary.

3. Color and Image Uniformity:

   • Smaller Pixel Pitch: The higher the pixel density, the more uniform the color and image quality. The individual pixels blend seamlessly, and the display produces more vibrant, accurate colors, leading to a more immersive experience for viewers.

   • Larger Pixel Pitch: With a larger pixel pitch, the image may appear less uniform, especially when viewed from close up, as the pixels may be more noticeable. This can lead to a "grainy" effect where the visual quality is not as refined.

      Applications Based on Pixel Pitch

​

1. Indoor Displays:

   • Smaller Pixel Pitch (1mm to 3mm): These displays are ideal for environments where the audience will be close to the screen. For example:

     • Retail Stores: High-quality, close-up visuals to attract customers.

     • Control Rooms: Clear, sharp images needed for monitoring and analyzing data.

     • Conferences and Events: Displays where audience members are seated near the screen, and high resolution is required for presentation content.

2. Outdoor Displays:

   • Larger Pixel Pitch (4mm and above): These displays are used for large-scale installations where viewers are typically farther away from the screen. For example:

     • Billboards: Outdoor advertising where viewers will likely be at a distance, so a larger pixel pitch works well.

     • Sports Arenas and Stadiums: For large screens viewed from a distance by spectators, a larger pixel pitch is acceptable.

     • Public Displays: Large outdoor screens in busy areas such as parks or streets where the viewing distance is significant.

3. Creative and Artistic Displays:

   • Custom Pixel Pitches: Some creative and artistic displays may use LED technology with varying pixel pitches for unique effects or large, immersive art installations where the viewing distance is expected to vary.

       How to Choose the Right Pixel Pitch

​

• For Close Viewing: If the display will be viewed up close, choose a screen with a smaller pixel pitch (1.2mm, 1.5mm, or 2mm). This is especially important for applications like indoor events, retail spaces, control rooms, or digital signage in museums or exhibitions.

• For Medium or Long Viewing: For displays where viewers will be farther away, such as outdoor billboards, stadiums, or large public spaces, you can opt for a larger pixel pitch (4mm or more). This allows for more cost-effective solutions while still providing clear images at a distance.

• Balance Between Pixel Pitch and Budget: There’s often a balance between the desired display quality and the budget available. Smaller pixel pitch screens generally provide superior image quality but come at a higher price point. Larger pixel pitch screens are more affordable and better suited for larger venues where high resolution is not a top priority.

• ​

Pixel pitch plays a crucial role in determining the visual quality of an LED screen. A smaller pixel pitch ensures higher resolution and sharpness, which is ideal for applications where viewers are close to the screen. A larger pixel pitch, on the other hand, is more suitable for larger displays viewed from a distance, such as outdoor advertising or stadium displays. Understanding pixel pitch is essential when selecting an LED screen, as it directly affects image quality, viewing experience, and cost. By choosing the appropriate pixel pitch for your specific needs, you can ensure optimal visual impact and performance for your display



• Resolution and Brightness: Details on how these factors influence viewer experience.



Resolution and Brightness are crucial factors that impact the quality of an LED display and how viewers experience the content.

1. Resolution:

   • Higher Resolution: More pixels = sharper, clearer, and more detailed images. Best for close viewing, such as in offices, retail displays, and indoor events.

   • Lower Resolution: Fewer pixels = blurrier images. Suitable for larger screens viewed from a distance, like outdoor billboards or big stadium displays.

2. Brightness:

   • Higher Brightness: Makes the screen visible even in bright environments (e.g., sunlight). Essential for outdoor displays and public advertising.

   • Lower Brightness: Best for indoor settings with controlled lighting, ensuring comfort without glare.

3. Together:

• High Resolution + High Brightness: Ideal for high-end displays seen close up and in any lighting, like video walls and indoor screens.

• Low Resolution + High Brightness: Good for outdoor signage where details aren't as important, but visibility in sunlight is critical.

In short, resolution defines image clarity, and brightness ensures visibility in various lighting conditions.



• Module Sizes and Configurations: Standard sizes and customization options.

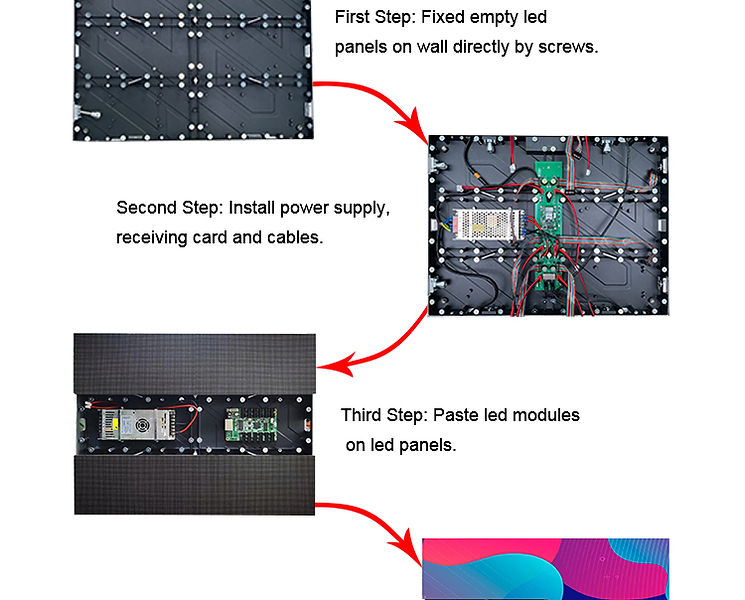

Module Sizes and Configurations refer to the individual panels that make up an LED screen. These modules can come in standard sizes or be customized for specific needs.

1. Standard Sizes:

   • Common sizes for LED modules are typically 500mm x 500mm or 500mm x 1000mm. These are widely used for easy assembly and scalability.

2. Customization Options:

   • Modules can be customized in shape (e.g., curved or rectangular) and size to fit unique installation requirements, like indoor or outdoor displays, curved screens, or large video walls.

In short: Standard module sizes are easy to use and assemble, while customization allows for flexibility to meet specific project needs.

​

​
